Cylindrical Activated Carbon Filter Cartridge
Freestanding cylindrical filter cartridge featuring a perforated steel sleeve and active carbon pellet fill for odor management.
Activated carbon adsorbs gas-phase odor molecules from cooking fumes. Proper sealing and matching mounting prevent untreated air bypassing the filter bed.
Always protect carbon cylinders with suitable upstream grease and pre-filters to prevent grease aerosols and dust from clogging the microscopic pores.
- Correct filter identification for your installation
- Supply and professional replacement available
- Inspection of housing and surrounding filtration stages
- Practical advice on protection and maintenance
Cylindrical Activated Carbon Filter Cartridge
This cylindrical activated carbon filter cartridge is engineered for odor absorption in commercial kitchens. Built with a perforated steel sleeve containing activated carbon pellets, suitable for standard commercial odor control units; always verify the cartridge length and connection on your existing mounting plate before ordering.
- Activated carbon pellets for effective absorption of cooking odors
- Suitable for common mounting configurations in restaurant odor units
- Optional expert on-site replacement and disposal of spent cylinders
Select Variant / Size:
Need another size? Contact us.
Prices are excluding VAT. Direct supply or supply including professional on-site installation available.
We will review your request and contact you as soon as possible • Choice of supply or supply + installation
What is a cylindrical activated carbon filter?
A cylindrical activated carbon filter is a specialized cartridge filter engineered for commercial kitchen ventilation systems and odor abatement units. The cartridge consists of perforated steel inner and outer sleeves filled with active carbon pellets.
The steel assembly is mounted into the bulkhead of the odor unit with an appropriate gasket seal. This ensures the filter is seated tightly, preventing untreated cooking vapors from bypassing the carbon bed. Always verify the connection type of your installation in advance.
- Filter type
- Cylindrical activated carbon cartridge
- Mounting fitting
- Connection according to existing installation (verify mounting and fit beforehand)
- Size & Execution
- Lengths 250, 400, 450 and 600 mm (custom dimensions on request)
- Construction material
- Perforated steel with corrosion-resistant metal end caps
- Filter media
- Activated carbon pellets for odor absorption
- Replacement indicator
- Dependent on cooking volume, operating hours and pre-filter condition (evaluated by inspection)
- SKU / Specification
- Per quote / specifications confirmed upon order
Available carbon cylinder lengths and prices
Priced lengths for activated-carbon filter cartridges. Always verify the existing filter housing and connection before ordering.
Carbon filter cylinders are selected based on cartridge length and the connection used by the existing filter housing. Measure your current cylinder length (250, 400, 450 or 600 mm) or check the unit nameplate. Different size or connection? Contact us.
Priced lengths
| Cartridge length | Configuration & Fitting | Price (excl. VAT) | Order |
|---|---|---|---|
| 250 mm | Size as stated — verify the existing connection | €35 excl. VAT | |
| 400 mm | Size as stated — verify the existing connection | €50 excl. VAT | |
| 450 mm | Size as stated — verify the existing connection | €35 excl. VAT | |
| 600 mm | Size as stated — verify the existing connection | €40 excl. VAT |
What does an activated carbon filter do in commercial kitchens?
Activated carbon filtration operates on the principle of physical adsorption of gas-phase molecules:
Molecular odor adsorption
Cooking, baking, and frying processes generate volatile organic compounds (VOCs) and odor molecules. As air passes through the carbon bed, gas-phase odor compounds adhere to the immense internal microporous surface area of the activated carbon.
Exhaust odor reduction
The filter helps significantly reduce the intensity of cooking odors in exhaust air, contributing to the mitigation of odor complaints in the surrounding neighborhood.
Targeted gas-phase filtration
Unlike mechanical particulate filters, activated carbon specifically targets gas-phase molecular compounds that pass through standard particle filters.
Where is a carbon filter cylinder used?
Carbon cylinder cartridges are utilized in compatible commercial odor control installations:
Odor control units (OCUs) on flat rooftops, building facades, and technical plant rooms
Commercial kitchens in restaurants, grill houses, wok eateries, snack bars, pizzerias, and bakeries
Commercial extraction and ventilation systems equipped with compatible cartridge mounting bulkheads
Building emission management systems where exhaust air requires odor abatement according to environmental guidelines
Why is upstream pre-filtration essential?
Activated carbon functions optimally only when properly shielded from grease and particulate contamination:
Protecting the carbon surface
Grease aerosols, soot, and dust particles can coat and clog the microscopic pores of the carbon media, causing premature loss of adsorption capacity before the normal service life is reached.
Requirement for multi-stage filtration
A commercial ventilation system therefore integrates baffle grease filters in the hood with synthetic pocket bag filters in the unit prior to the airflow reaching the carbon cylinders.
Preserving system airflow
Contaminated filter cartridges increase duct pressure drop, resulting in reduced extraction performance over cooking zones.
How are carbon cylinders installed and replaced?
Replacing and mounting carbon filter cylinders requires careful professional execution:
Safe system isolation
The extraction system and fan motor are safely powered down and locked out before opening filter chambers.
Disassembly & cabinet inspection
Saturated spent cylinders are removed from the mounting bulkhead. The bulkhead plate, connections, and casing are inspected for grease or soot buildup.
Fitting & secure mounting
New cylinders are inserted into mounting positions and secured firmly, ensuring the gasket forms a tight seal without airflow bypass.
Pre-filter inspection
The upstream pocket filter or panel filter is inspected simultaneously and replaced if required to protect new carbon cylinders.
Commissioning & verification
The cabinet door is securely sealed, the system is restarted, and airflow, differential pressure, and seal integrity are verified.
When should commercial carbon filters be inspected or replaced?
Because filter lifespan depends on cooking volume, cuisine type, and pre-filter condition, use these practical indicators:
Noticeable exhaust odors
When cooking or frying odors become noticeable outside at the discharge point, the carbon bed is saturated and replacement is required.
Visible contamination or corrosion
Grease deposits, moisture, or rust on the perforated steel casing indicates impaired pre-filtration or saturated cartridges.
Pressure drop & extraction rate
A noticeable reduction in suction at the cooking canopy may indicate clogged filter cartridges or loaded pre-filters.
Unknown service history
When taking over premises or lacking service records, an on-site professional assessment is recommended.
Saturation of activated carbon cartridges depends heavily on cooking volume and pre-filter performance. Have your carbon filter condition inspected periodically by our specialists to ensure timely replacement.
Hygiene, environmental quality and odor management in hospitality
Commercial odor filtration provides a vital contribution to responsible kitchen operations and a pleasant local environment:
Supporting odor reduction
Helps effectively reduce cooking and frying emissions in exhaust air as part of a properly designed and maintained ventilation system.
Minimizing neighborhood nuisance
Contributes to positive relations with neighbors, nearby retailers, and residential buildings surrounding commercial premises.
Maintaining duct and ventilation components
Supports the overall mechanical condition of the odor cabinet and downstream ducts when maintained regularly.
Please note: Odor and carbon filtration contributes to emission management within a properly designed ventilation system, but does not provide medical protection or guarantee complete elimination of all substances.
Real-World Photos of Cylindrical Activated Carbon Filter Cartridge
View genuine installations, service changeouts and on-site inspections by our team.

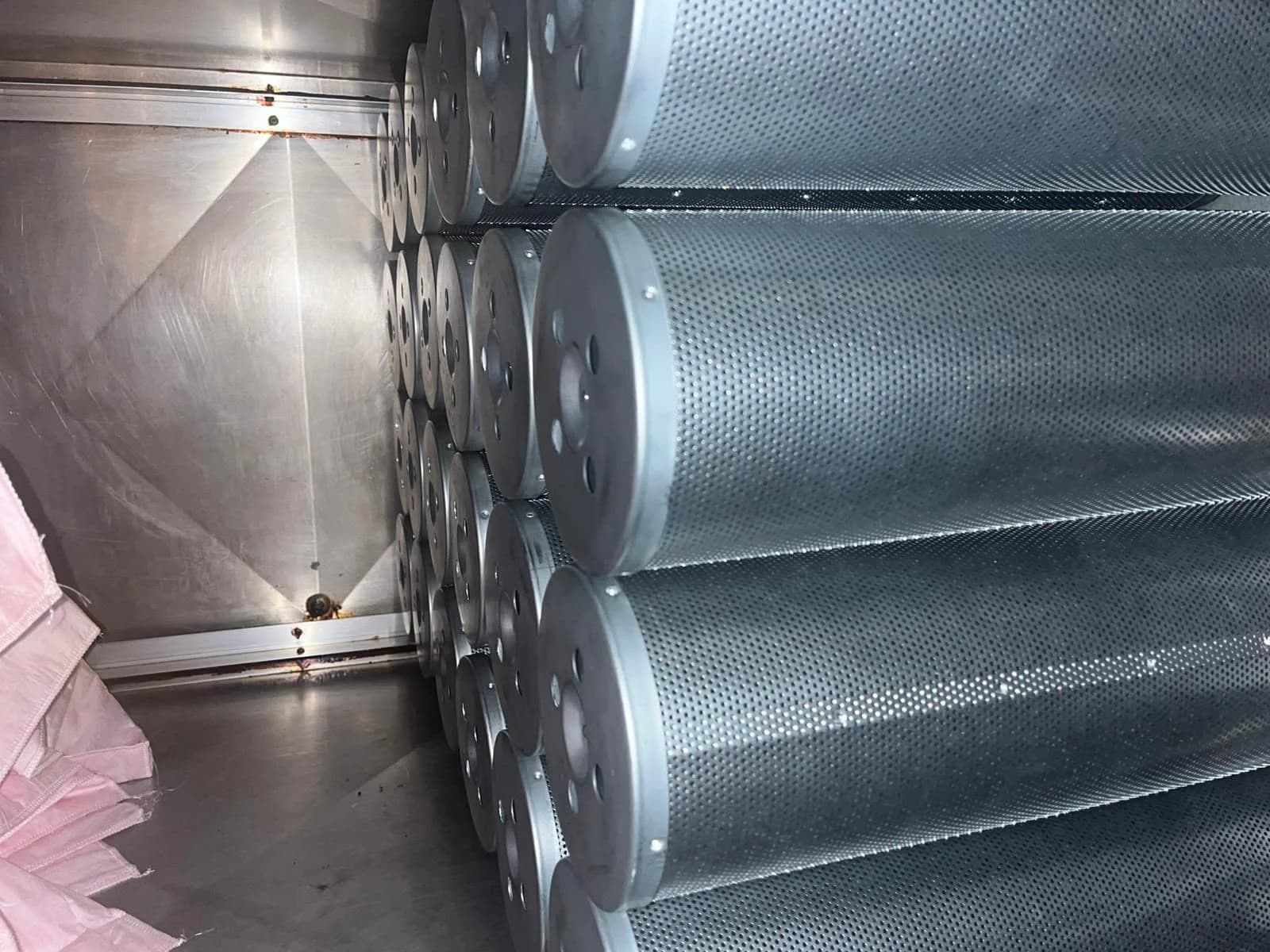

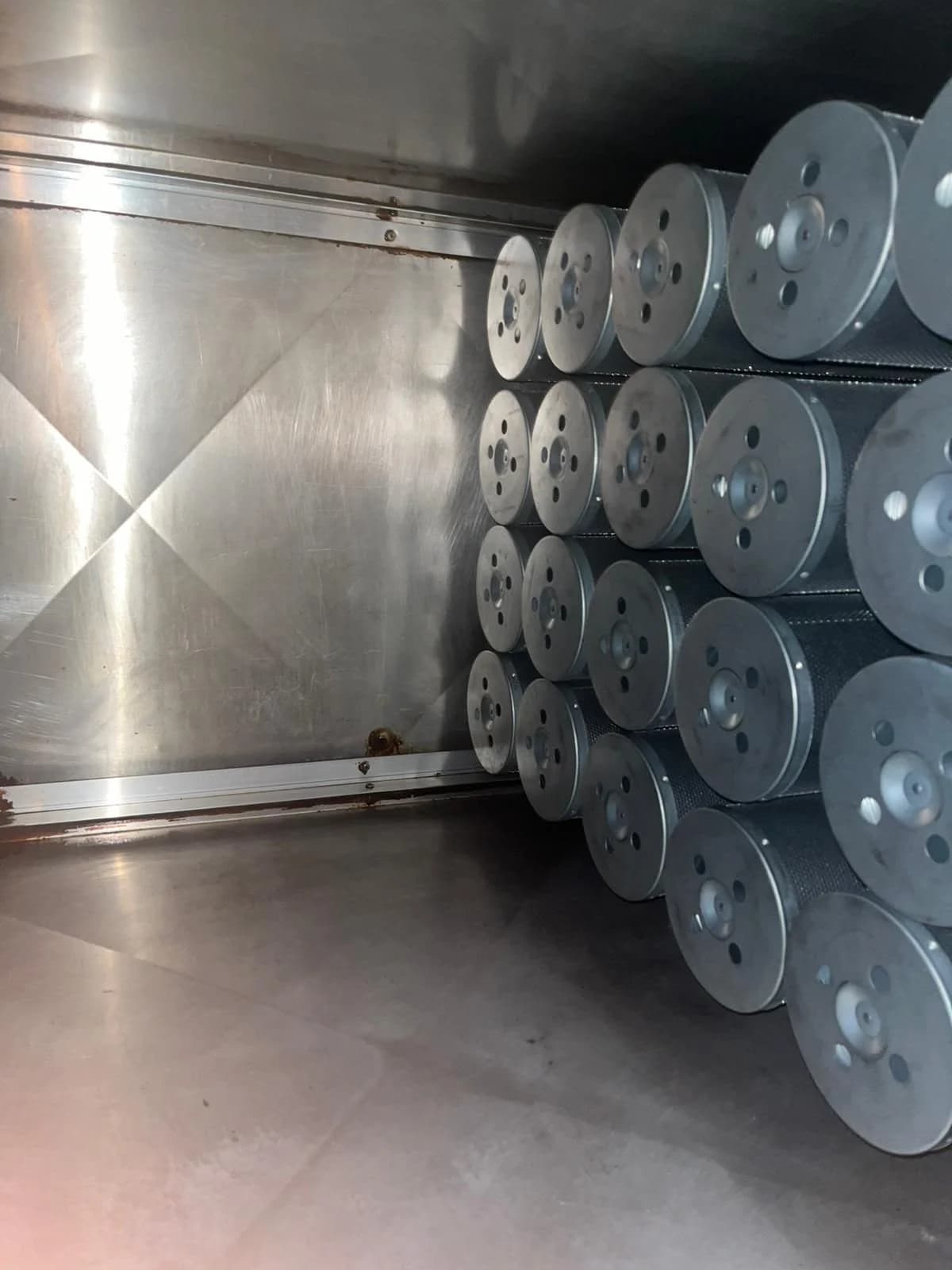

Large matrix of activated carbon filter cylinders installed inside a professional odor filtration unit.
Comparison between saturated rusted carbon cartridges and clean new filters after intensive commercial kitchen operation.

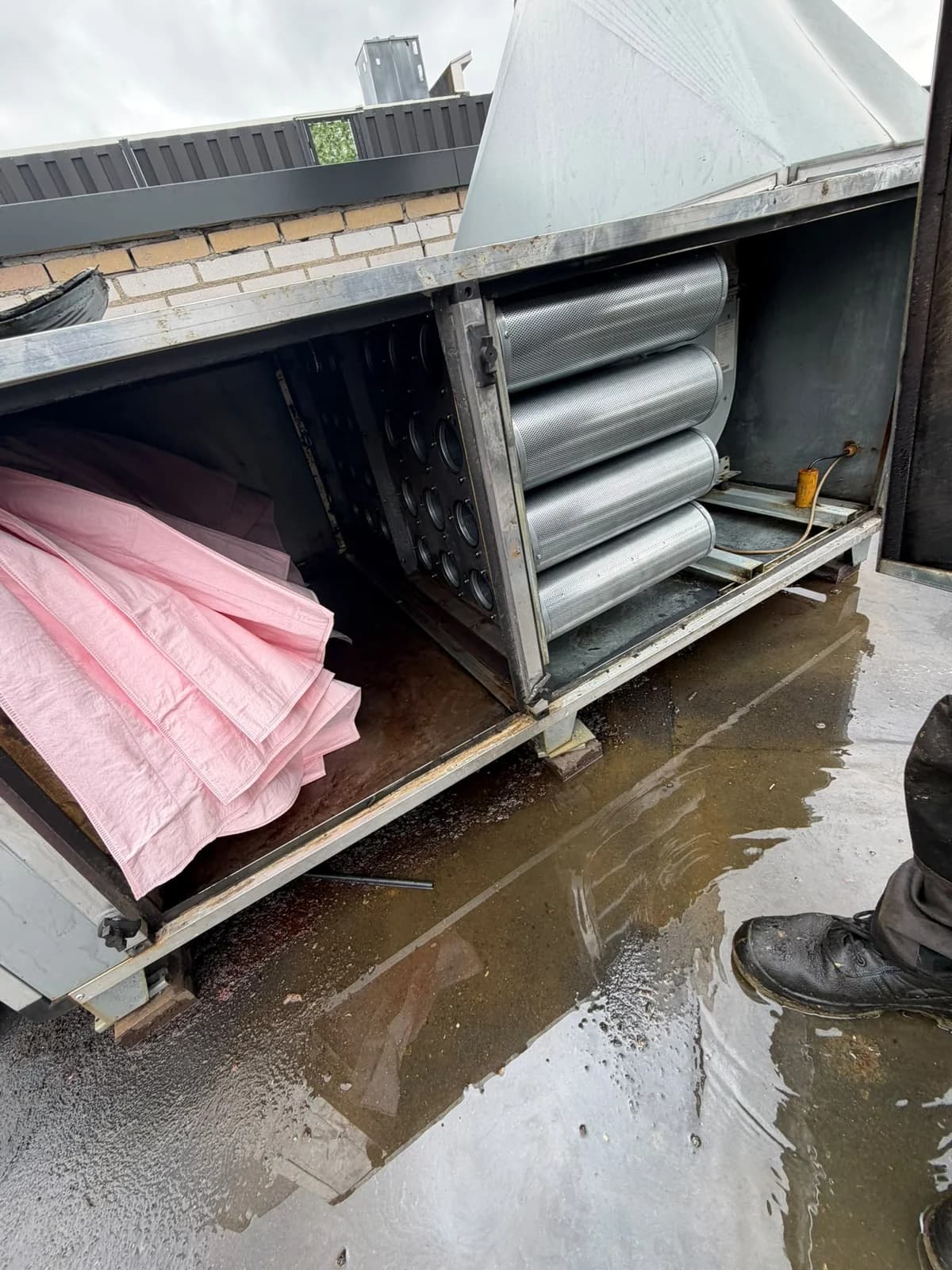

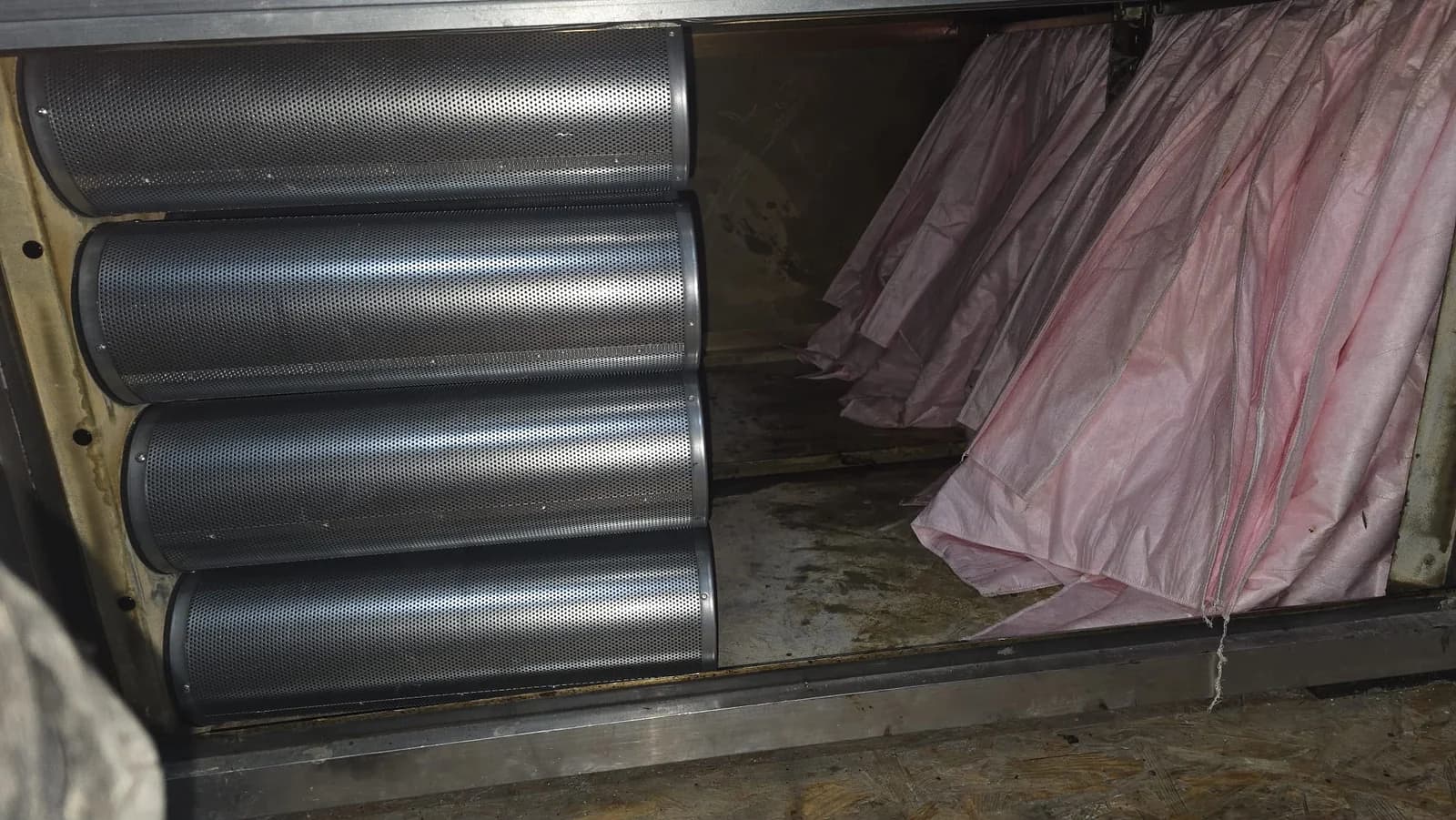

Installation and servicing of carbon cylinders and pre-filters in a rooftop odor filter unit.

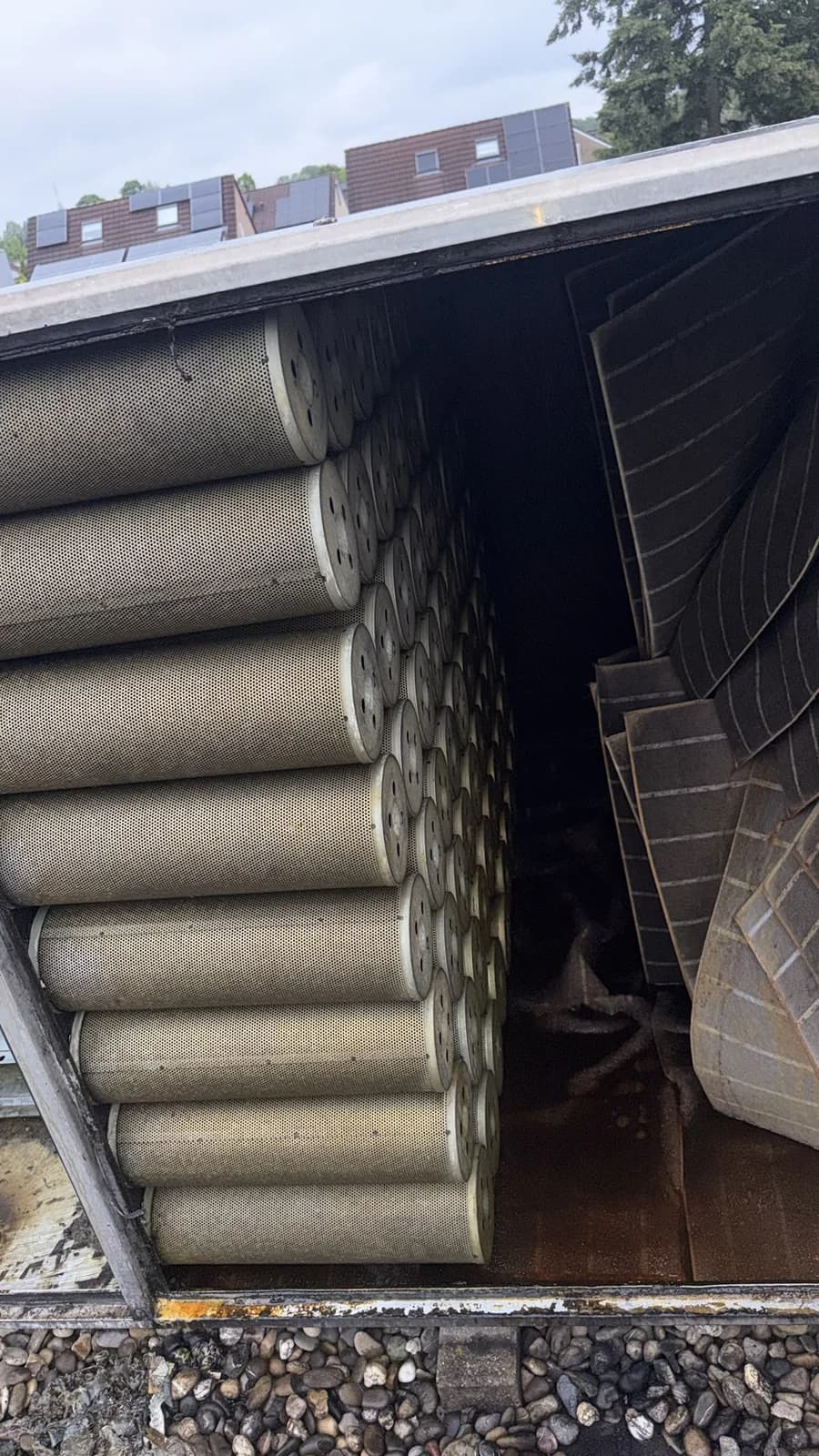

Large rooftop installation with stacked carbon cylinders and pre-filter panels.

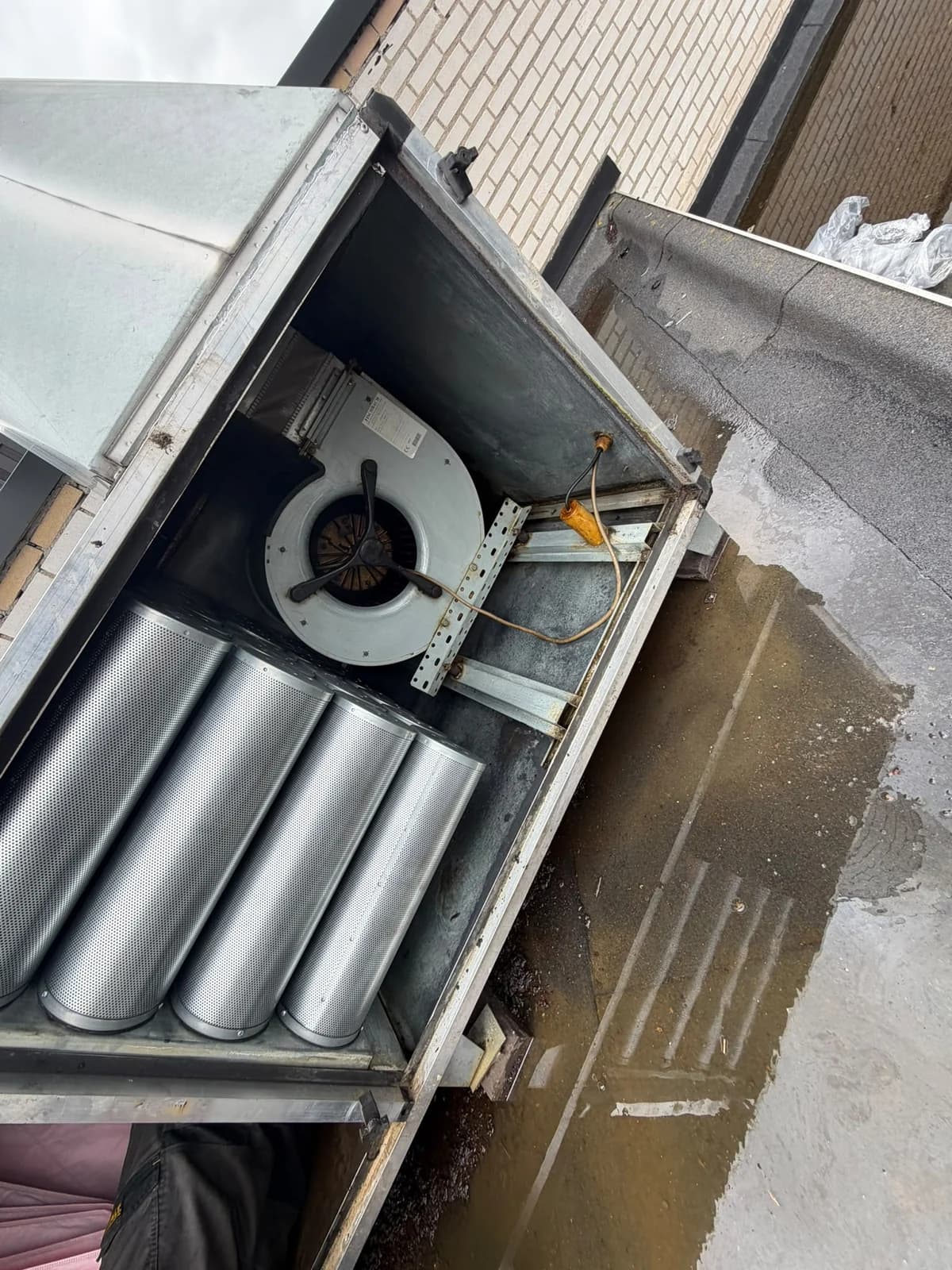

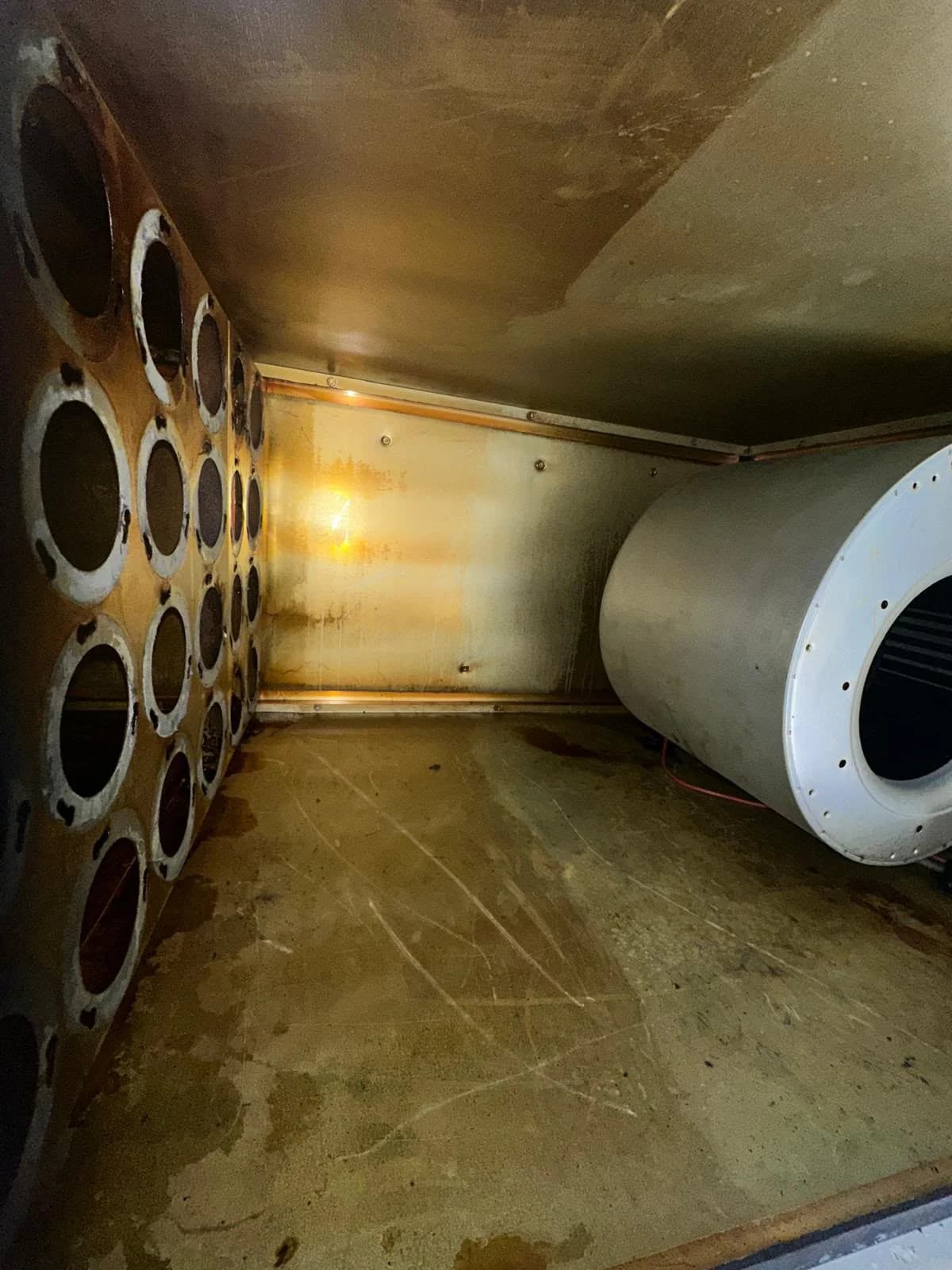

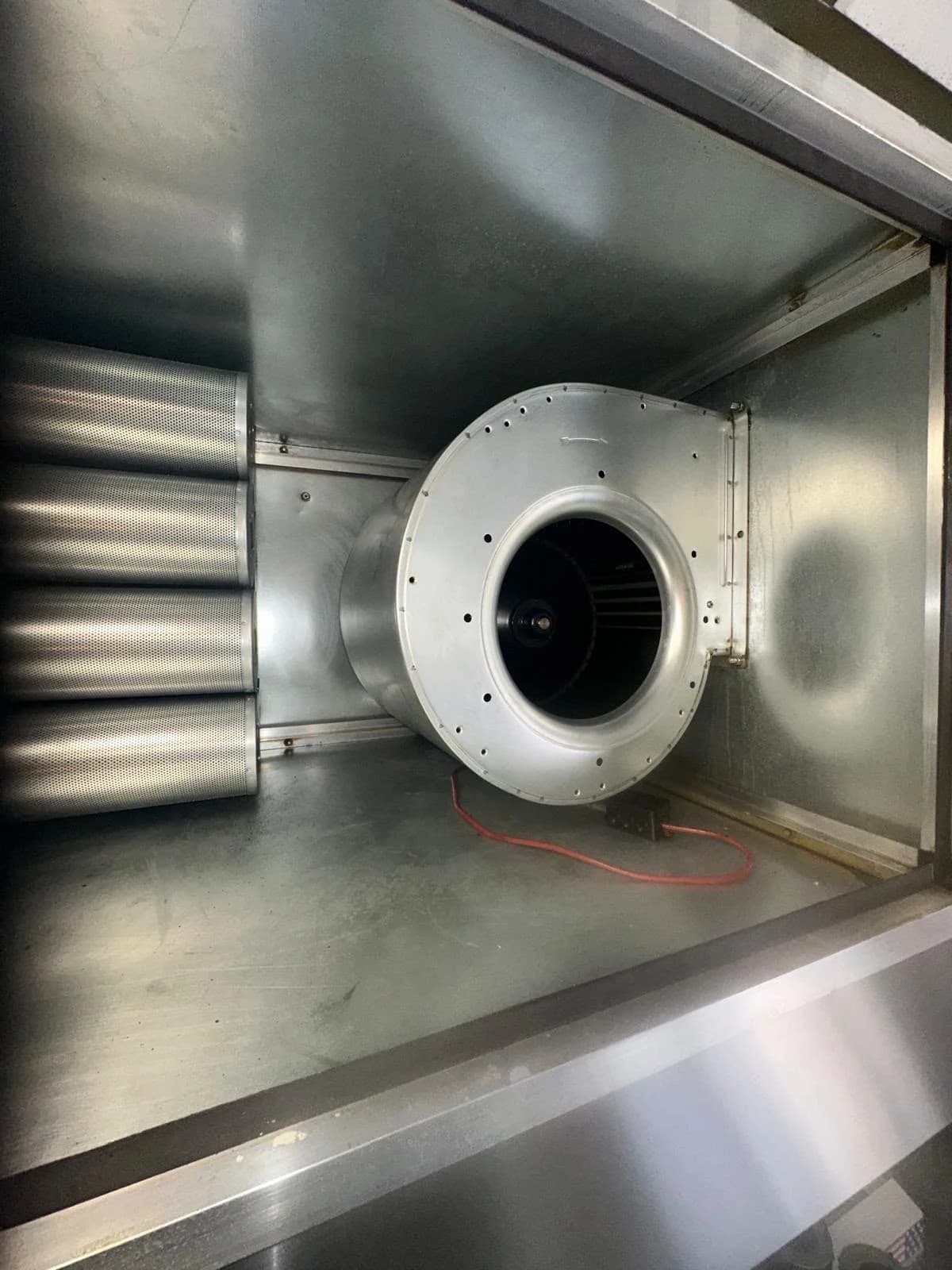

Centrifugal fan and carbon cylinder filter assembly inside a stainless steel housing.

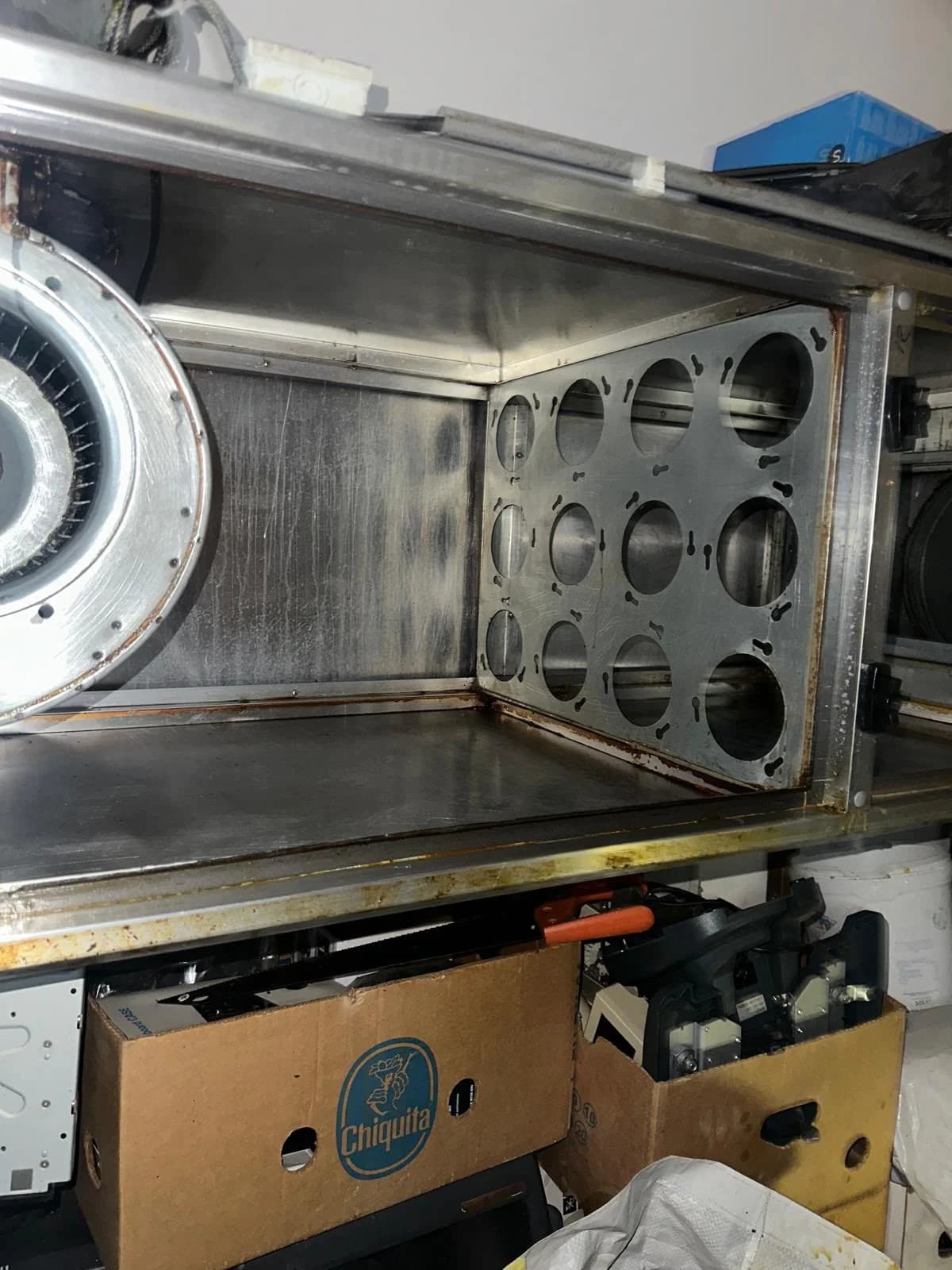

Empty mounting frame inside an odor unit prior to installing new carbon cylinders.
Why choose Luchtreiniger Pro for your carbon filters?
From exact filter selection to expert on-site installation and regular maintenance:
Expert filter identification
Assistance determining the required cylinder count, connection type, and dimensions based on photos or unit nameplates of your installation.
Direct supply & delivery options
Reliable delivery, shipment or collection of suitable filter sets for your commercial location.
Professional on-site installation
Our technicians handle complete disassembly, inspection, secure fitting, and environmentally responsible disposal of old cylinders.
Comprehensive extraction maintenance
Option to combine filter replacement with duct cleaning, fan inspection, and pre-filter renewal for turnkey reliability.
Filter supply only
Reliable direct delivery of the complete filter set to your commercial location.
- New carbon cylinders
- Direct delivery to your address
- Guidance on correct quantities
Supply + On-site installation & disposal
Turnkey service by our technicians including disassembly, visual unit inspection, fitting, and disposal of old cylinders.
- Disassembly and disposal of saturated old cylinders
- Inspection and cleaning of the mounting frame
- Fitting and check of mounting connections and seals
- Airflow and general installation check
Not sure which filter fits your system?
Hundreds of dimensions and mounting systems exist. Take a quick photo of your filter, cabinet, or nameplate and send it over. Our technical team will help determine which configuration and dimensions suit your installation.
- Helps reduce the risk of ordering the wrong configuration or size
- We will review your request and contact you as soon as possible with guidance and pricing
- Options for both supply and full turnkey on-site installation
